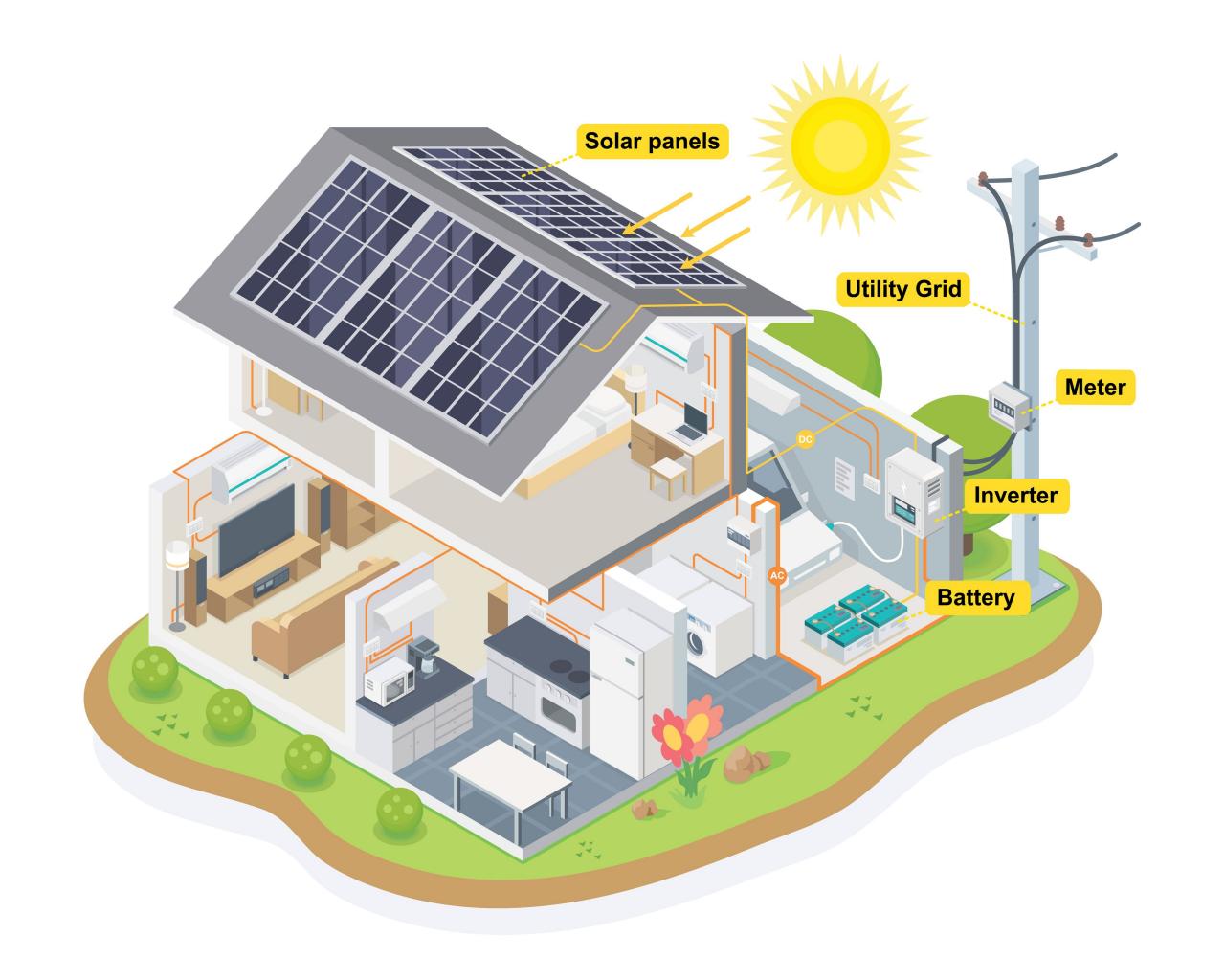

Solar energy works by converting the energy from the sun into usable electricity for your home or business.

Here's how it works

Solar panels

The first step in the process is to install solar panels on your roof or property. The panels are made of photovoltaic (PV) cells that convert sunlight into direct current (DC) electricity.

Inverter

The DC electricity produced by the panels is then fed into an inverter, which converts the DC electricity into alternating current (AC) electricity, which is the type of electricity that is used in homes and businesses.

Electric Panel

The AC electricity is then fed into your electric panel and distributed throughout your home or business to power your lights, appliances, and other electrical equipment.

Grid Connection

If your solar panel system produces more electricity than you use, the excess electricity is fed back into the grid, and you earn credits on your utility bill. On the other hand, if you need more electricity than your panels are producing, you can draw electricity from the grid.

How Solar Panel Works?

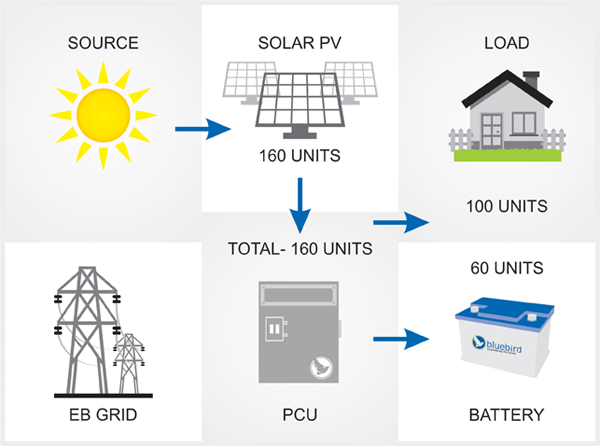

Solar Case1

Case 1

PV energy more than connected load EB GRID not Required Battery not fully charged

When energy produced by the solar system is greater than the connected load, the excess energy is used to charge the batteries. The grid is not used in this case.

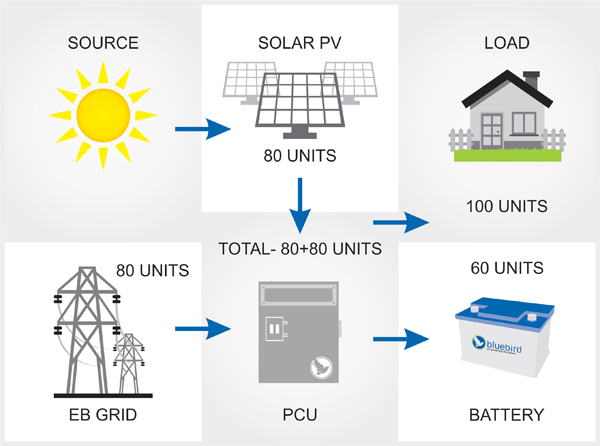

Solar Case2

Case 2

PV energy less than connected load EB GRID power available Battery not fully charged

When energy produced by the solar system is less than the connected load, both grid & solar system power the load and charge the batteries.

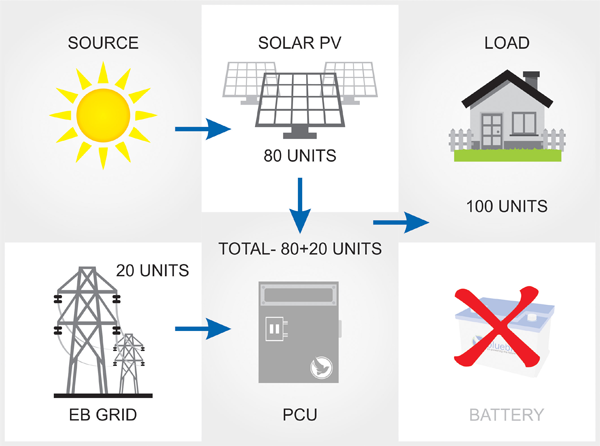

Solar Case3

Case 3

PV energy less than connected load EB GRID power available Battery fully charged

When energy produced by the solar system is less than the connected load and the batteries are fully charged, both grid & solar system power the load, keeping solar as a priority.

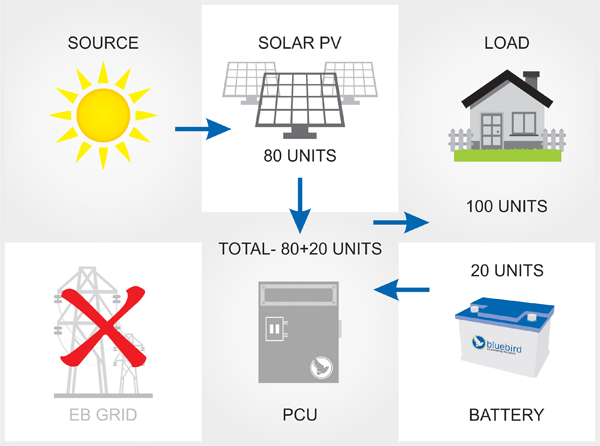

Solar Case4

Case 4

(DAYTIME POWERCUT)

PV energy less than connected load EB GRID power not available Battery charged

During a day time power cut, batteries & solar system are used to power the load, keeping solar system as a priority

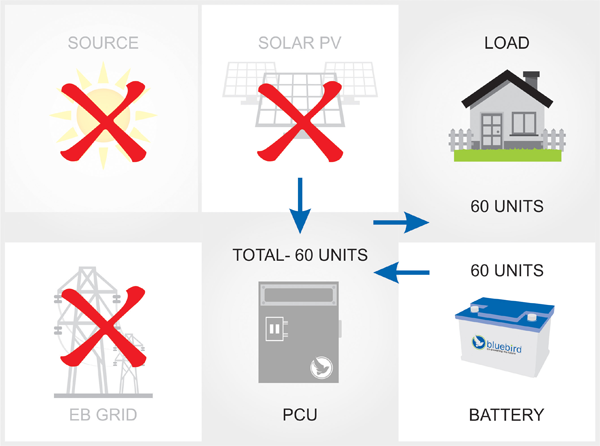

Solar Case5

Case 5

(NIGHT TIME POWERCUT)

PV energy not available. EB GRID power not available. Battery charged and works purely as an inverter. Supply directly proportionate to battery charge.

During a night time power cut, batteries are the only source to power the load.
